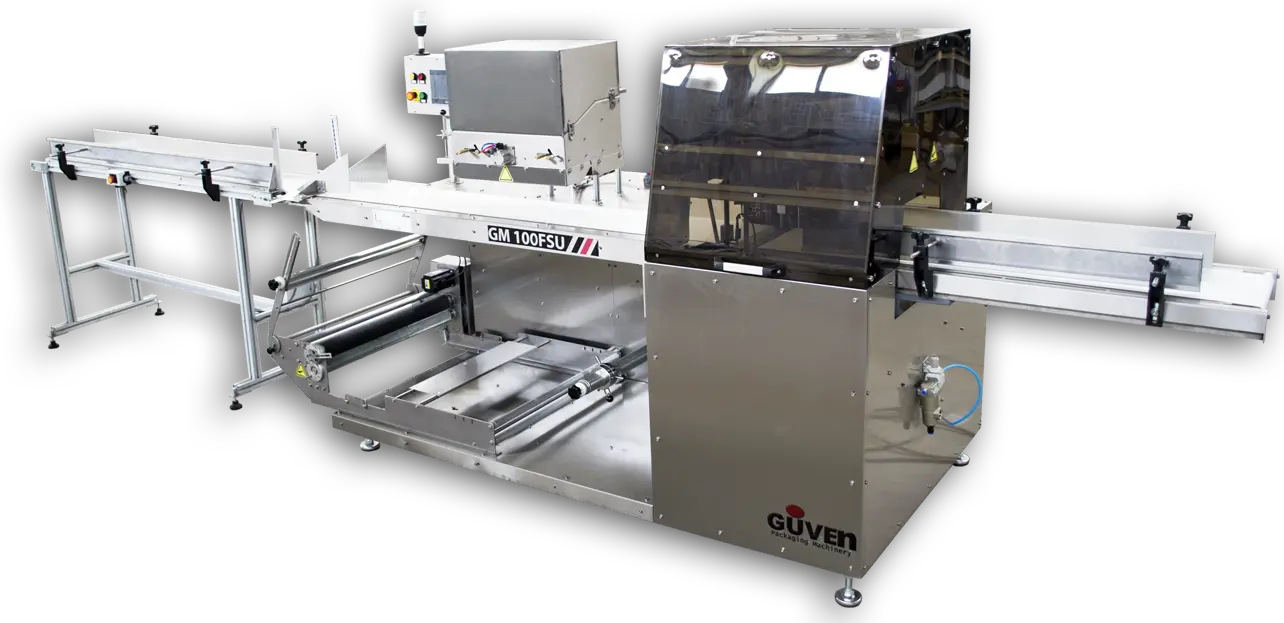

PE FILM FROM BUTTOM BOX MOTION HFFS FLOWPACK PACKAGING MACHINE
GM 100FSU-PE is Film From Buttom, Box Motion Sealing, 3 axis motor controlled, with photocell tracking function, 7″ 65536 colorful touch screen panel included hffs flowpack packaging machine. Possible to use PE Film(Polietilen), HDPE (High-Density Polietilen) . Packaging Speed up to 60 packs/min. Suitable to pack toast bread, bread, pita bread, tortilla, sandwich, vegetables, fruites, tomates, pepper, etc.
- Compact and technological design
- Able to use different various of product and raw material
- Box Motion Cutting System. (Hermatic sealing)
- Film From Top System make easy packaging which product are hard to pack by film from buttom systems.
- Diagnostic Alarm System, user friendly touch screen control panel
No Product No Bag System provides if there is missing product on infeed conveyor. Film pulling system does not work and not waste film.
No Gap No Seal System provides if there is wrong placed product inside of the film. Cutter stop cutting and let the wrong placed product pass through and continue cutting when there is no wrong placed product.
Hermatic Sealing System has strong and esthetic quality sealing. There is no infiltration of air inside of the package. Best choice for MAP system.
- The main chassis is steel.
- All chassis cover and the places that touch the products are stainless steel Cr-Ni.
- Enduring Wheels to replace the machine easily.
- Enduring Adjustable feet to place machine permanently.
RAW MATERIALS CAN BE USED
- PE Film(Polietilen), HDPE (High-Density Polietilen), OPP, BOPP, paper and aluminium laminasions, selephone that one of surfaces can weld with hot or cold.
- 60 Pack/min
- Interlock Safety Doors
- 3 Axis Motor Controlled
- Photocell Tracking System
- 7″ 65536 Color Touch Screen User Control Panel
- Easy to change size of the raw material
- 220 VAC / 50Hz 1 Phase + N, 3,3 KW
- 24 VDC Control Voltage for Safety
- Box Motion Cutting System
- Film From Buttom type sealing
- Product carry system by band
- Stepless setting packaging length
- Stepless setting machine speed
- Product Feeding Conveyor
- Adjustable Folding Box
- Easy to changeover product pusher
- 3 set of under seal disk system
- PID Controlled heating system
- Date Printer
- MAP system
- No Product No Bag
- No Gap No Seal
PRODUCT TO PACK
– Toast bread packaging, bread packaging, pita bread packaging, tortilla packaging, sandwich packaging, vegetables packaging, fruites packaging, tomates packaging, pepper packaging, apple packaging, several pieces products packaging etc.
